Lacquer Mixers
📝 Machine Overview
Industrial Lacquer Mixers are precision-engineered systems designed for the efficient, uniform, and repeatable blending of lacquers, varnishes, and high-gloss coatings. These mixers handle formulations that require impeccable clarity, consistent viscosity, and the perfect dispersion of resins, solvents, pigments, and additives without introducing defects or air entrapment. They are the cornerstone of quality in finish production, ensuring batch-to-batch consistency essential for automotive, furniture, and premium product coatings.
Base Lacquer Production: Mixing nitrocellulose, acrylic, or polyurethane resins with solvents and plasticizers.
Pigment & Colorant Incorporation: Dispersing and wetting of organic/inorganic pigments and metallic flakes for color bases.
Effect Coatings: Homogeneous blending of pearlescent pigments and additives for specialized visual effects.
Clear Coat Formulation: Precise mixing of resins, hardeners, and flow agents for high-gloss topcoats.
Varnish & Wood Finish Production: Blending of natural or synthetic oils, resins, and driers.
Paints & Coatings Manufacturing
Automotive OEM and Refinish Coatings
Fabrication of Wooden Furniture & Cabinetry
Consumer Electronics (Device Housing Finishes)
Aerospace & Marine Coatings
Premium Packaging and Printing Inks
Our lacquer mixers employ a combination of hydraulic shear and gentle yet thorough convective mixing. A precisely engineered impeller system (often a combination of a high-shear disperser and an anchor or helical sweep) creates a controlled flow pattern. This ensures that even low-density additives and delicate effect pigments are incorporated homogeneously into the base medium without excessive heat generation or shear degradation, preserving the lacquer’s chemical integrity and optical properties.
To meet diverse production needs, lacquer mixers are available in several configurations:

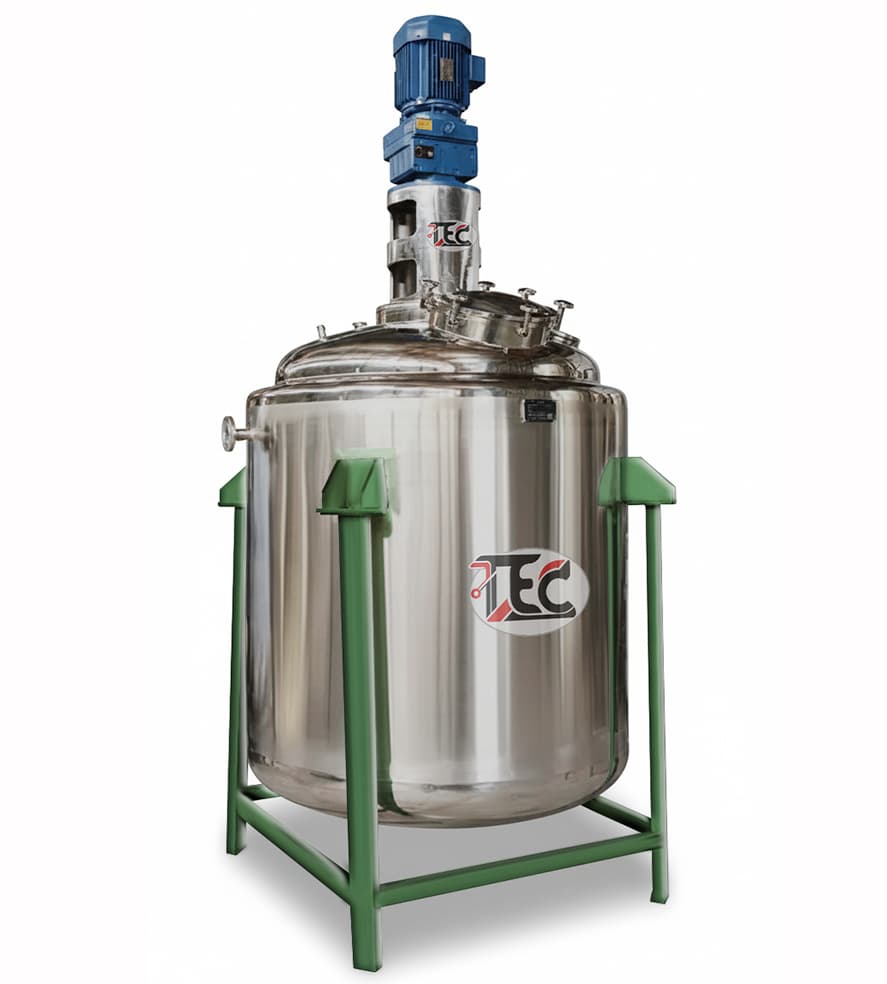

Batch Mixers (Closed Tank):
Ideal For: High-value products, sensitive formulations, and processes requiring strict environmental control (minimizing solvent evaporation).
Features: Sealed vessel with mechanical seals, often with vacuum capability for de-aeration. Can be equipped with single or multi-shaft systems.
In-Line Mixers (Continuous Flow):
Ideal For: High-volume, continuous production lines where lacquer is mixed immediately before application.
Features: Static mixers or high-shear rotor-stator units installed directly in the pipeline. Provide consistent, on-demand mixing of multiple components.

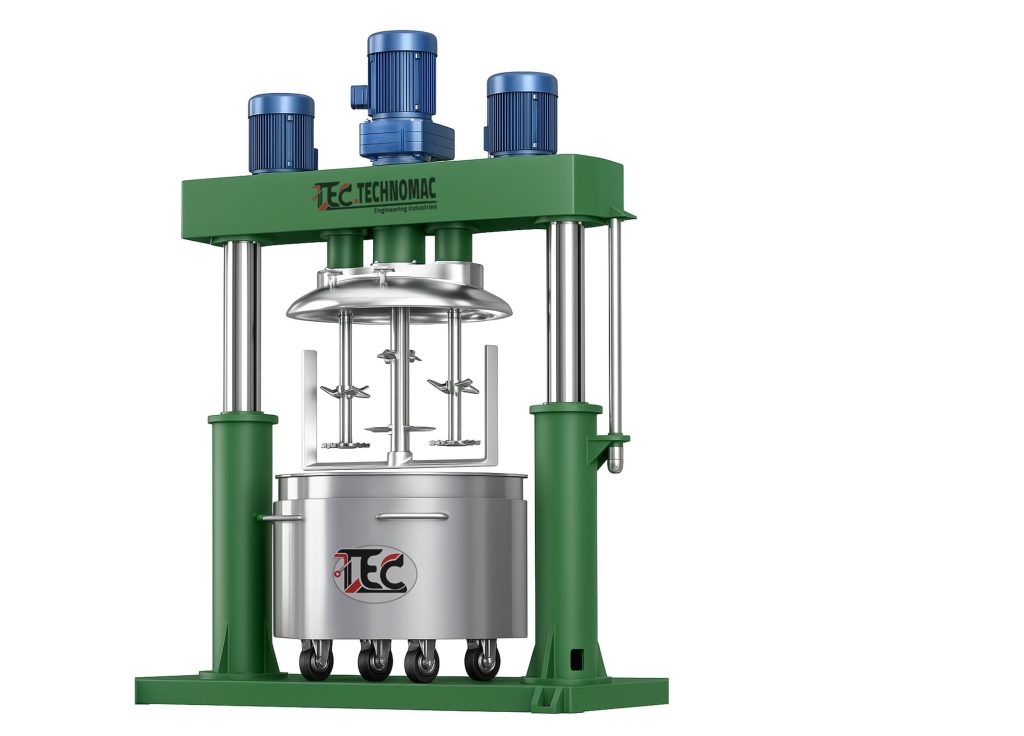

Dual-Shaft Mixers (Combined Action):
Ideal For: Versatile production requiring both high-shear dispersion and slow-speed homogenization in one vessel.
Features: Combines a high-speed disperser blade for breaking down agglomerates with a slow-speed anchor/scraper for heat transfer and full-volume mixing. Our flagship configuration.
Single-Shaft Mixers with Specialized Impellers:
Ideal For: Standard lacquers and varnishes with less complex rheology.
Features: Utilizes impellers like turbine, pitched blade, or helical ribbon, selected based on viscosity and mixing goal (e.g., solids suspension vs. blending).
Laboratory & Pilot-Scale Mixers:
Ideal For: R&D, formula scaling, and small-batch production.
Features: Bench-top or floor-standing units that accurately simulate the shear and flow patterns of full-scale production equipment, ensuring seamless scale-up.
⚙️ Technical Specifications & Features
" Core Technical Specifications "
| Parameter | Specification | |
|---|---|---|
|
1 |
Capacity Range |
50 to 5,000 liters
|
|
2 |
Mixing Principle |
Dual-Shaft: High-Shear Dispersion Blade + Anchor Scraper |
|
3
|
Drive Power |
7.5 kW to 75 kW (variable frequency drive)
|
|
4
|
Mixing Speed |
Dispenser: 0-1,500 rpm (variable); Anchor: 0-60 rpm
|
|
5 |
Construction Material |
Contact parts: 304 or 316L Stainless Steel, mirror finish options
|
|
6
|
Sealing System |
Double mechanical seal with flush connection
|
|
7 |
Control System |
PLC with HMI touchscreen. Recipe management, data logging, and temperature control.
|
|
8 |
Heating/Cooling |
Jacketed vessel for precise temperature regulation (±2°C).
|
|
9 |
Safety Features |
ATEX options available, emergency stop, interlocks, guard systems.
|
" Advanced Technical Features "
Design Features & Innovations
Low-Shear Incorporation Zone: Dedicated vortex for gentle introduction of light fillers and effect materials.
De-aeration Mixing Cycle: Programmable slow-speed cycles to minimize air bubbles, critical for high-gloss finishes.
Full-Vessel Sweep Scraper: Prevents material buildup on walls, ensuring uniform temperature and mix consistency.
Sanitary Design: CIP (Clean-in-Place) capable models with polished surfaces and minimal dead zones for rapid product changeovers.
Advanced Process Control: Real-time monitoring of torque, viscosity, and temperature for proactive quality assurance.
Competitive Advantages
Superior Finish Quality: Guarantees defect-free mixing for flawless film formation and optical clarity.
Maximized Raw Material Yield: Efficient dispersion reduces pigment usage and eliminates waste from off-spec batches.
Reduced Process Time: Powerful, optimized agitation cuts mixing cycles by up to 40% compared to standard agitators.
Unmatched Repeatability: Automated recipe control ensures perfect consistency between laboratory development and full-scale production.
Total System Integration: Designed to interface seamlessly with upstream pre-mix stations and downstream filling lines.
Global Compliance & Support: Machines built to international standards (CE, etc.), backed by our global technical service network.
Installation & Considerations
Our engineering team provides full support for installation planning, including foundation requirements, utility hookups (power, solvent lines, CIP), and operator training. Service plans include regular maintenance, seal inspections, and impeller wear analysis to ensure lifelong operational excellence.
