Weighing Systems
📝 Machine Overview
Industrial Precision Weighing Systems are engineered measurement and control solutions designed for the accurate, reliable, and traceable determination of weight in production, processing, and logistics. Beyond simple scales, these are integrated systems combining high-integrity load cells, robust platforms, and advanced instrumentation to drive process decisions, ensure recipe compliance, control filling operations, and manage inventory. Our weighing systems are built to deliver metrological precision in the harsh realities of industrial environments, from hygienic food processing to explosive chemical plants.
Batch & Recipe Formulation: Precisely weighing multiple ingredients into a mixer or reactor.
Filling & Bagging: Gravimetric control for filling bags, boxes, drums, and IBCs to a target weight.
Inventory Management: Tank farm and silo weighing for bulk solids and liquids.
Quality Control: Checkweighing finished packages to ensure they are within specified limits (no underfills/overfills).
Process Control: Using weight as a proxy for level, or to control feed rates in continuous processes.
Logistics & Shipping: Weighing pallets and goods for shipping cost calculation and load optimization.
Food & Beverage Processing
Pharmaceutical & Biotechnology
Chemical & Petrochemical
Agriculture & Grain Handling
Logistics & Warehousing
Construction Materials (cement, aggregates)
Mining & Minerals
Manufacturing & Assembly
At the core of any system is the load cell, a transducer that converts a mechanical force (weight) into an electrical signal. Modern systems use strain-gauge technology within a Wheatstone bridge circuit. The weight of an object on the platform causes a micro-deformation in the load cell, changing its electrical resistance. This minute signal is amplified, filtered, and converted to a digital weight value by a high-speed weight indicator or controller. Accuracy is maintained through rigorous calibration, temperature compensation, and immunity to environmental interference.
By Function & Integration:
Bench & Floor Scales: For general-purpose check weighing, counting, and portioning.
Platform Scales & Weighbridges: Large-capacity scales for pallets, drums, and vehicles.

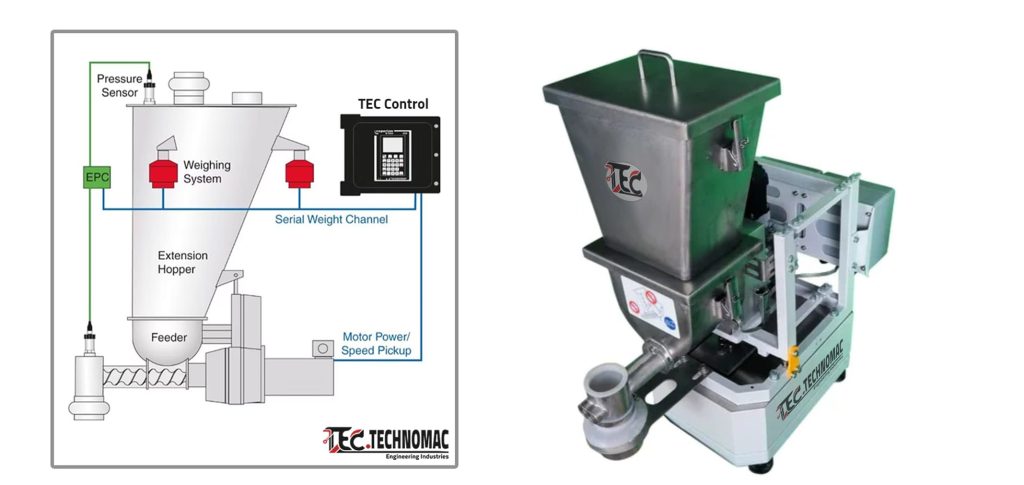

Process Weighing Systems: Integrated into vessels (weigh modules under tanks, hoppers, reactors) for batch control, level indication, and inventory management.
In-Motion Checkweighers: High-speed systems that weigh products on a conveyor for quality control and compliance.
Filling & Dosing Weigh Controllers: Gravimetric systems that control fill heads to achieve precise target weights.
By Industry Design:
Hygienic (Washdown) Scales: Stainless steel, IP69K rated for food, pharma, and chemical washdown.
Intrinsically Safe (IS) Scales: Certified for use in hazardous areas (ATEX, IECEx) where flammable gases or dusts may be present.
Legal-for-Trade Scales: Approved (NTEP, OIML, EU) for commercial transactions where weight determines price.
⚙️ Technical Specifications & Features
" Core Technical Specifications "
| Parameter | Specification Range | |
|---|---|---|
|
1 |
Weighing Capacity |
1 kg to 500+ metric tons (system dependent).
|
|
2 |
Accuracy Class |
From general purpose (III) to high precision (I).
|
|
3
|
Load Cell Technology |
Stainless steel shear beam, double-ended shear beam, compression.
|
|
4
|
Load Cell Protection |
IP66/IP68/IP69K, Overload protection (150-300% of capacity).
|
|
5 |
Weight Indicator/Controller |
Multi-input digital displays, PLC-integrated weight modules.
|
|
6
|
Display Resolution |
Up to 1:1,000,000 (e.g., 6000 divisions for a 6kg scale).
|
|
7 |
Communication Interfaces |
Analog (4-20mA), Digital (Ethernet/IP, Profinet, Modbus TCP, RS-232/485).
|
|
8 |
Sample Rate & Filtering |
High-speed (up to 4800 Hz) with digital filtering for stability in vibration-prone environments.
|
|
9 |
Construction (Platform) |
Carbon steel with epoxy coat, Stainless Steel 304/316L.
|
|
10 |
Environmental Rating |
Standard, Washdown (IP66/IP69K), Hazardous Area (ATEX Zone 1/21, 2/22).
|
|
11 |
Compliance |
OIML R60, NTEP, EA-10/14, ISO 9001:2015 calibration traceability.
|
|
12 |
Software Features |
Auto-tare, digital filtering, piece counting, fill control, batching, data logging.
|
" Advanced Technical Features "
Core Features
Environmental Immunity: Advanced digital filtering and mechanical design (check rods, stay rods) nullify the effects of vibration, wind loads, and thermal expansion for stable readings.
Robust Mechanical Design: Weigh modules and platforms are engineered for off-center loading, impact resistance, and long-term repeatability.
Seamless Process Integration: Weight controllers function as standalone units or as fully integrated I/O within a plant-wide PLC/DCS, enabling complex batching and control sequences.
Hygienic & Cleanable Design: Stainless steel platforms with radiused corners, sealed junctions, and smooth surfaces allow for complete high-pressure cleaning without damage.
Comprehensive Data Management: Built-in data logging, recipe storage, and connectivity to MES/ERP systems for full traceability, yield analysis, and regulatory reporting.
Diagnostics & Health Monitoring: Modern digital load cells and indicators provide diagnostic data on load cell health, shock events, and potential calibration drift.
Competitive Advantages
Guaranteed Measurement Integrity: Our systems are designed to maintain specified accuracy in real-world conditions, ensuring recipe quality, regulatory compliance, and fair trade.
Reduced Product Giveaway: High-precision filling and checkweighing minimize overfilling, saving significant material costs at high volumes.
Enhanced Process Automation: Reliable weight data serves as the primary input for automated batching, filling, and process control, reducing manual intervention and errors.
Lower Total Cost of Ownership: Durable construction, sealed electronics, and remote diagnostics minimize downtime, maintenance costs, and calibration frequency.
Application-Specific Engineering: We provide more than components; we deliver engineered solutions—from a single scale to a multi-vessel batching plant—with full design support.
Installation & Calibration
Correct installation is critical. This includes proper foundation (for large scales), correct mounting of weigh modules to avoid binding forces, and electrical isolation. We provide detailed installation manuals and support. All systems include certified calibration using traceable weights, with ongoing service contracts available to ensure perpetual compliance and accuracy.
