Planetary Mixers
📝 Machine Overview
A Planetary Mixer is a high-precision industrial mixer distinguished by its unique agitator movement. The agitator (or agitators) rotates on its own axis while simultaneously orbiting around the mixing vessel’s central axis—mimicking the planetary motion of celestial bodies. This dual-action path ensures every part of the batch is subjected to intensive, uniform shear and kneading action. Designed to handle products ranging from viscous pastes and doughs to high-solid-content materials, planetary mixers are the cornerstone of repeatable, high-quality mixing in sectors where product consistency is non-negotiable.
Planetary mixers are ideal for applications requiring intensive mechanical action:
Adhesives & Sealants: Manufacturing of silicone, epoxy, polyurethane, and acrylic-based products.
Chemicals & Pharmaceuticals: Mixing ointments, creams, gels, pastes, and high-viscosity chemical intermediates.
Food & Bakery: High-grade doughs (cookie, pastry), thick batters, confectionery (marzipan, fondant), meat mixes, and fruit preparations.
Cosmetics & Personal Care: Production of lipsticks, creams, lotions, toothpastes, and deodorants.
Battery & Advanced Materials: Electrode slurries for Li-ion batteries, ceramic pastes, and composite materials.
Construction Materials: Grouts, mortars, tile adhesives, and waterproofing compounds.
Chemical Manufacturing
Pharmaceutical & Nutraceutical
Food & Beverage Processing
Cosmetics & Toiletry
Construction Materials
Electronics & Advanced Energy Storage
Research & Development Laboratories

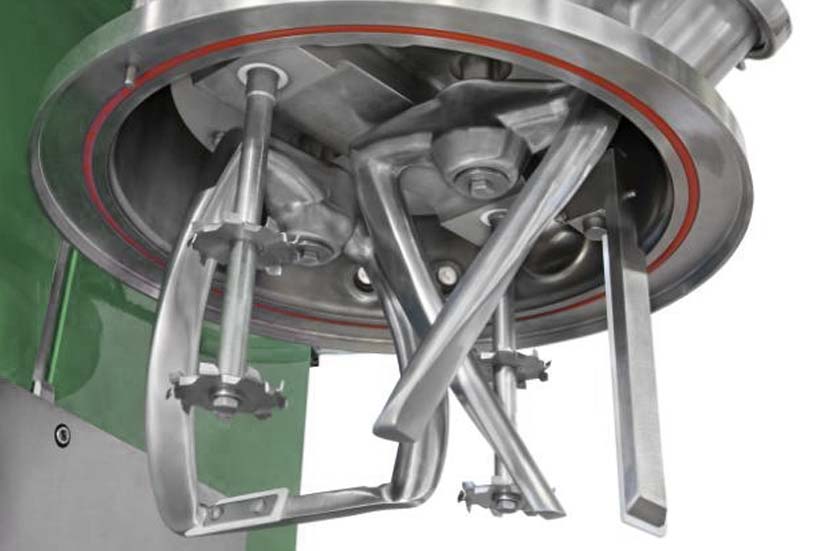

The core mechanism involves a mixing bowl that is either fixed or can be lifted/tipped. One or more agitators are mounted on a rotating “arm” (the planet carrier). As the arm rotates, it carries the agitators around the bowl (the “orbit”). Simultaneously, each agitator spins on its own axis in the opposite or same direction, at a different speed. This creates a complex, overlapping shear pattern that thoroughly folds, stretches, and kneads the material, eliminating dead zones and ensuring complete homogeneity.
Single vs. Dual Agitator: Single agitator for standard batches; dual agitators for ultra-homogeneous mixing of extremely viscous or sticky products.
Fixed vs. Tilting Bowl: Fixed bowls with bottom discharge valves for liquids/pastes; tilting bowls for easy discharge of doughs and heavy masses.
Vacuum Capability: Integrated vacuum cover and system for de-aeration, critical for bubble-free products like optical adhesives or high-density ceramics.
Jacketed Bowls: For precise temperature control during exothermic or heat-sensitive reactions.
Laboratory & Production Scales: Available from 1-liter R&D units to 2,000-liter industrial production machines.
⚙️ Technical Specifications & Features
" Core Technical Specifications "
| Parameter | Specification | |
|---|---|---|
|
1 |
Model |
PM-300
|
|
2 |
Working Capacity |
200 – 300 Liters
|
|
3
|
Power Drive |
45 kW, Electro-hydraulic with frequency inverter
|
|
4
|
Agitator Speeds |
Planetary Rotation: 12/24/36 RPM (variable)
Agitator Rotation: 24/48/72 RPM (variable)
|
|
5 |
Agitator Options |
3-Hook (heavy kneading), Helical (mixing/folding), Whisk (aerating) – Interchangeable
|
|
6
|
Mixing Bowl |
316L Stainless Steel, mirror finish (Ra ≤ 0.8 µm), jacketed for heating/cooling
|
|
7 |
Discharge |
Hydraulic bowl tilting system with programmable tilt angles
|
|
8 |
Control System |
Lockable safety guard with electrical interlock, emergency stop, overload protection
|
|
9 |
Utilities |
Compressed Air: 6 bar, Cooling/Heating Media Connections: 1″ NPT
|
" Advanced Technical Features "
Salient Features
Zero-Dead-Zone Mixing: The planetary motion ensures complete batch coverage.
Interchangeable Tools: Quick-change agitator system for maximum flexibility across product lines.
Precision Control: Fully programmable speed, time, temperature, and vacuum profiles for unmatched repeatability.
Robust Construction: All contact parts in high-grade stainless steel, designed for rigorous industrial cleaning and long service life.
Hygienic Design: Smooth surfaces, minimal crevices, and clean-in-place (CIP) capabilities for food, pharma, and cosmetic grades.
Competitive Advantages
Superior Product Consistency: Delivers batch-to-batch uniformity critical for quality assurance and regulatory compliance.
Process Versatility: One machine can handle multiple complex recipes by changing tools and programs, reducing capital expenditure.
Reduced Mixing Time: The intensive shear action significantly shortens cycle times compared to conventional mixers, boosting productivity.
Scalability: Recipes developed on laboratory-scale planetary mixers can be linearly scaled to production units with high confidence.
Lower Lifetime Cost: High energy efficiency, durable construction, and minimal maintenance requirements result in an excellent total cost of ownership.
Installation & Space Requirements
Requires a leveled, reinforced concrete floor. The PM-300 model requires approximately 3.5m (L) x 2.5m (W) of floor space with 2.8m overhead clearance for operation and maintenance. Connections for electrical power (400V, 3-phase), plant air, and optional cooling water/chilled glycol must be provided at the site.
